Rogowski Coil CT’s | RoCoil Flexible Rope Current Transformers

$130.00$340.00

SKU: N/A Category:

Description

Fits into panels where rigid core CTs are unsuitable or simply won’t fit

Request A Quote

Find A Distributor

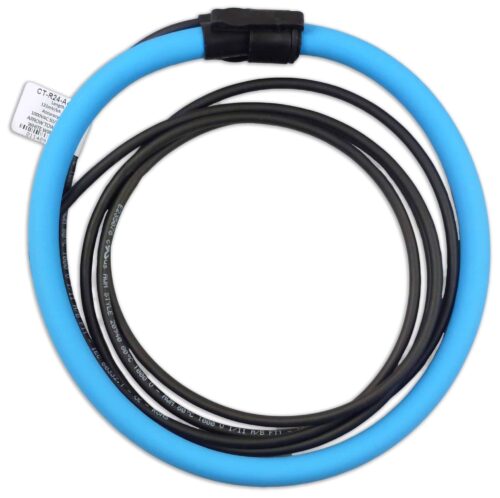

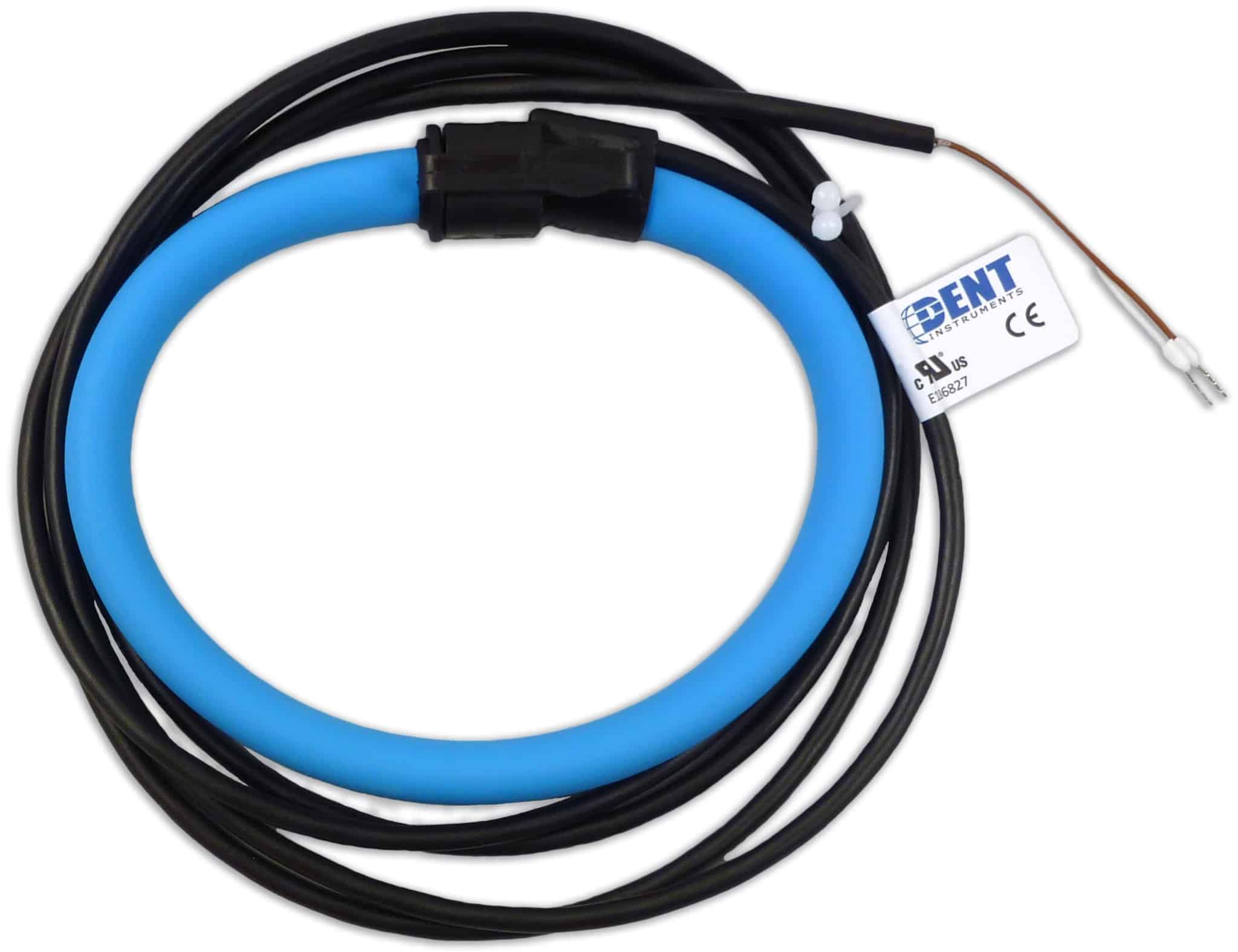

DENT’s IEEE Class RoCoil line of Rogowski Coil CTs offer significant advantages over conventional Split Core or Clamp-On CTs in certain installations. These “rope-style” current transformers deliver “installer-friendly” features such as large window size, light weight, wide current range, and mechanical flexibility for mounting in tight quarters. RoCoils provide accurate, non-intrusive measurement of AC combined with easy placement around cable bundles, large bus bars, and irregularly shaped conductors.

RoCoil CTs are designed for use with ANSI C12 Class meters such as DENT’s PowerScout Series instruments. They are also compatible with DENT ELITEpro XC meters. This Rogowski-type sensor produces an output signal (di/dt) of 131mVAC per 1000A at 60 Hz (110mVAC/1000A @ 50 Hz). Performance of these CTs meets or exceeds IEEE C57.13 Class 1.2.

These CTs require a customer-supplied integrator/amplifier, such as the one built into DENT’s ELITEpro XC and PowerScout instruments. Contact DENT Instruments to determine compatibility with other products.

Four lengths available: 16″, 24″, 36″, and 47″.

3M leads standard. 16″, 24″, 36″ models available with optional 7M or 15M leads. 15 meter leads require additional lead time. Please contact the factory for ordering information.

All DENT CTs are sold individually (not in sets).

Why Choose A Rogowski Coil Current Transformer?

All pricing in US Dollars and applies to US customers only. Pricing does not include duties and taxes. International customers, please click here to obtain a quote.

Additional information

Weight N/A
Dimensions N/A
Model

16" RoCoil Flexible CT w/ 3 Meter Leads (4.5" window), 16" RoCoil Flexible CT w/ 7 Meter Leads (4.5" window), 16" RoCoil Flexible CT w/ 15 Meter Leads (4.5" window), 24" RoCoil Flexible CT w/ 3 Meter Leads (7.0" window), 24" RoCoil Flexible CT w/ 7 Meter Leads (7.0" window), 24" RoCoil Flexible CT w/ 15 Meter Leads (7.0" window), 36" RoCoil Flexible CT w/ 3 Meter Leads (10.8" window), 36" RoCoil Flexible CT w/ 7 Meter Leads (10.8" window), 36" RoCoil Flexible CT w/ 15 Meter Leads (10.8" window), 47" RoCoil Flexible CT w/ 3 Meter Leads (14.6" window)

Key Features

Key Features
  • Current Range 5-5000A AC (depending on meter)
  • Accuracy: 100% verified to meet C57.13-2008 Class 1.2 Standard. <0.6% typical.
  • Designed for accurate, non-intrusive measurement
  • Fit into panels where rigid core CTs are unsuitable or simply won’t fit
  • 16″, 24″, and 36″ models available with 3M, 7M, or 15M leads.
  • Use to measure AC current over a wide, dynamic range
  • Compatible with ELITEpro XC/SP and all PowerScout Series power meters
  • May require the use of an amplifier/integrator when used with non-DENT meters. Contact DENT for details.
  • cURus (conforms to UL STD 61010-1, certified to CAN/CSA STD C22.2 No. 61010)
  • CE

Documentation

Documentation

Part Numbers

Part Numbers

All DENT CTs are sold individually (not in sets).

 Part Number Amp Range* Description
CTR16A4U 5-5000A 16″ RōCoil Rogowski 4.5″ (11.5 cm) Opening, 3M Leads
CTR16A4U-7M 5-5000A 16″ RōCoil Rogowski 4.5″ (11.5 cm) Opening, 7M Leads
CTR16A4U-15M 5-5000A 16″ RōCoil Rogowski 4.5″ (11.5 cm) Opening, 15M Leads
CTR24A4U 5-5000A 24″ RōCoil Rogowski 7.0″ (17.9 cm) Opening, 3M Leads
CTR24A4U-7M 5-5000A 24″ RōCoil Rogowski 7.0″ (17.9 cm) Opening, 7M Leads
CTR24A4U-15M 5-5000A 24″ RōCoil Rogowski 7.0″ (17.9 cm) Opening, 15M Leads

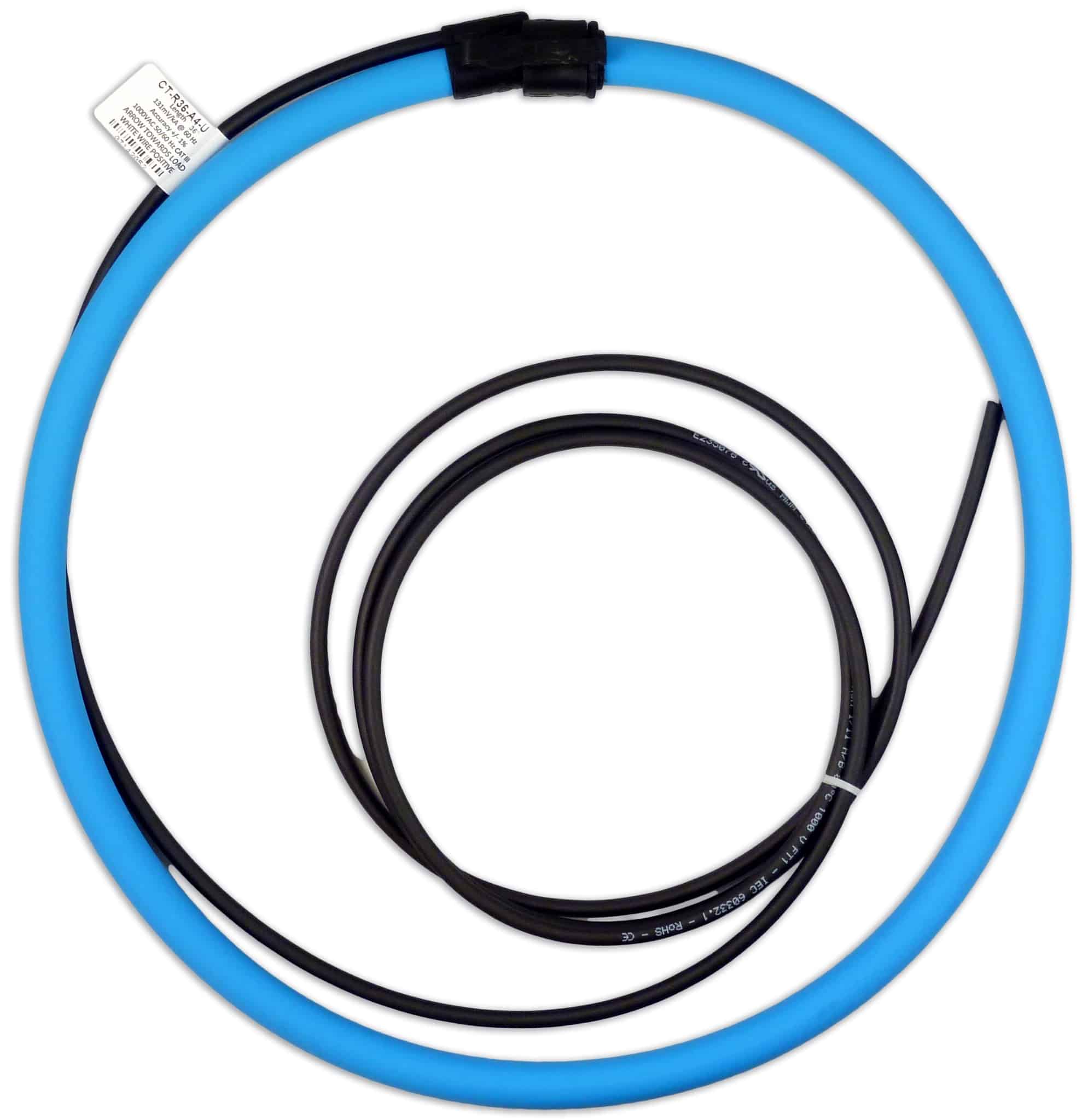

CTR36A4U 5-5000A 36″ RōCoil Rogowski 10.8″ (27.5 cm) Opening, 3M Leads
CTR36A4U-7M 5-5000A 36″ RōCoil Rogowski 10.8″ (27.5 cm) Opening, 7M Leads
CTR36A4U-15M 5-5000A 36″ RōCoil Rogowski 10.8″ (27.5 cm) Opening, 15M Leads

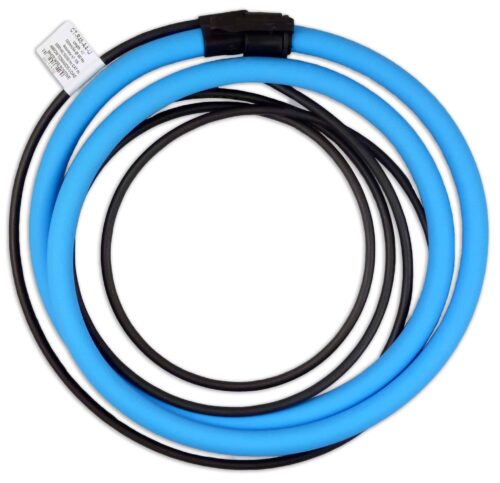

CTR47A4U 5-5000A 47″ RōCoil Rogowski 14.6″ (37.0 cm) Opening, 3M Leads

*Amp range dependent on meter type. PS3037: 5-4000A, PS24: 5-5000A, ELITEpro XC: 5-5000A. Confirm meter specifications prior to ordering. Contact DENT with any questions.
