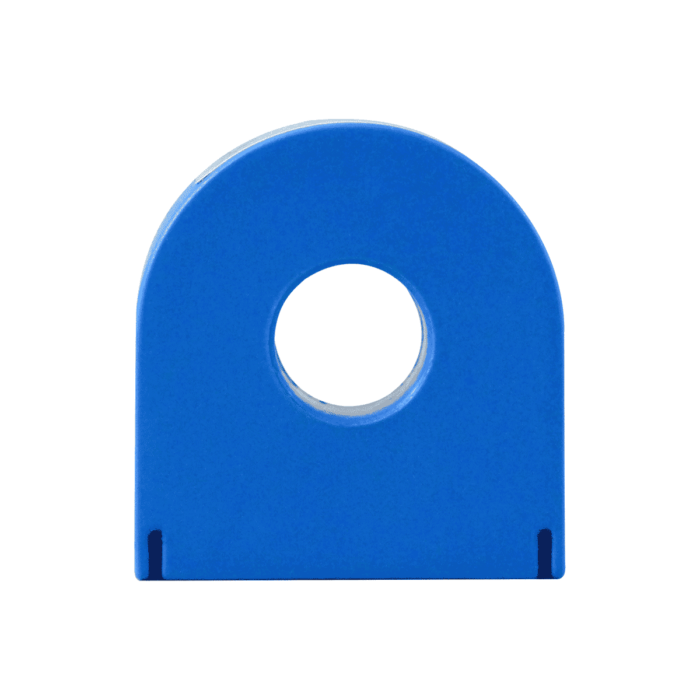

5/20/50/100A Revenue Grade Solid Core Toroidal D-Shape Current Transformer

$40.00

Description

DENT’s Revenue Grade Toroidal D-Shaped Current Transformers ensure exceptionally accurate signal transformation with low phase shift, making them ideal for Revenue Grade applications. They perform reliably even in harsh environmental conditions, ensuring consistent accuracy and dependability. This series of CTs guarantees very high accuracy and reliable performance in a wide range of conditions.
This series of CTs ensures exceptionally accurate signal transformation with low phase shift, even in harsh environmental conditions.

Designed for use on ANSI C12 Class meters, the revenue grade performance of these CTs meets or exceeds IEC 61869-2 Class 0.2; IEC 60044-1 Class 0.3; and IEEE C57.13 Class 0.3.

The RGT Series CTs are CUL/US 61010 listed as recognized components, CE listed, RoHS compliant, and are 600V CAT III rated devices. They are available for current inputs up to 100 Amps with 2.4M (8′) long, 24 AWG twisted pair leads.

Available in four amperage ranges: 5A, 20A, 50A, 100A.

All DENT CTs are sold individually (not in sets).

All pricing in US Dollars and applies to US customers only. Pricing does not include duties and taxes. International customers, please click here to obtain a quote.

Additional information

Weight N/A
Dimensions N/A
Current Rating

5A, 20A, 50A, 100A

CT Style

Solid Core

Form

Toroidal – D-Shape

Window Size

0.5" (12.8mm)

Accuracy Grade

Revenue (Tenant Billing)

Accuracy Rating

±0.2% error

Current Range

0.05-10A, 0.2-40A, 0.5-100A, 1.0-200A

Lead Length

8' (2.4m)

CTEP Approval

Not Applicable

Key Features

Key Features
  • Window Size: 0.5″
  • Available in four amp ratings: 5A, 20A, 50A, and 100A
  • Output is 333.3mV at rated current
  • Revenue grade performance meets or exceeds IEC 61869-2 Class 0.2, IEC 60044-1 Class 0.2, and IEEE C57.13 Class 0.3
  • Designed for use with PowerScout or ELITEpro meters
  • UL Recognized

Documentation

Documentation

Part Numbers

Part Numbers

All DENT CTs are sold individually (not in sets).

Description Amp Range Part Number
5A Revenue Grade Solid Core Toroidal D-Shape CT 0.05-10A CT-RGT12-0005-U
20A Revenue Grade Solid Core Toroidal D-Shape CT 0.2-40A CT-RGT12-0020-U
50A Revenue Grade Solid Core Toroidal D-Shape CT 0.5-100A CT-RGT12-0050-U
100A Revenue Grade Solid Core Toroidal D-Shape CT 1.0-200A CT-RGT12-0100-U
