Description
Ideal for Monitoring Building Mains

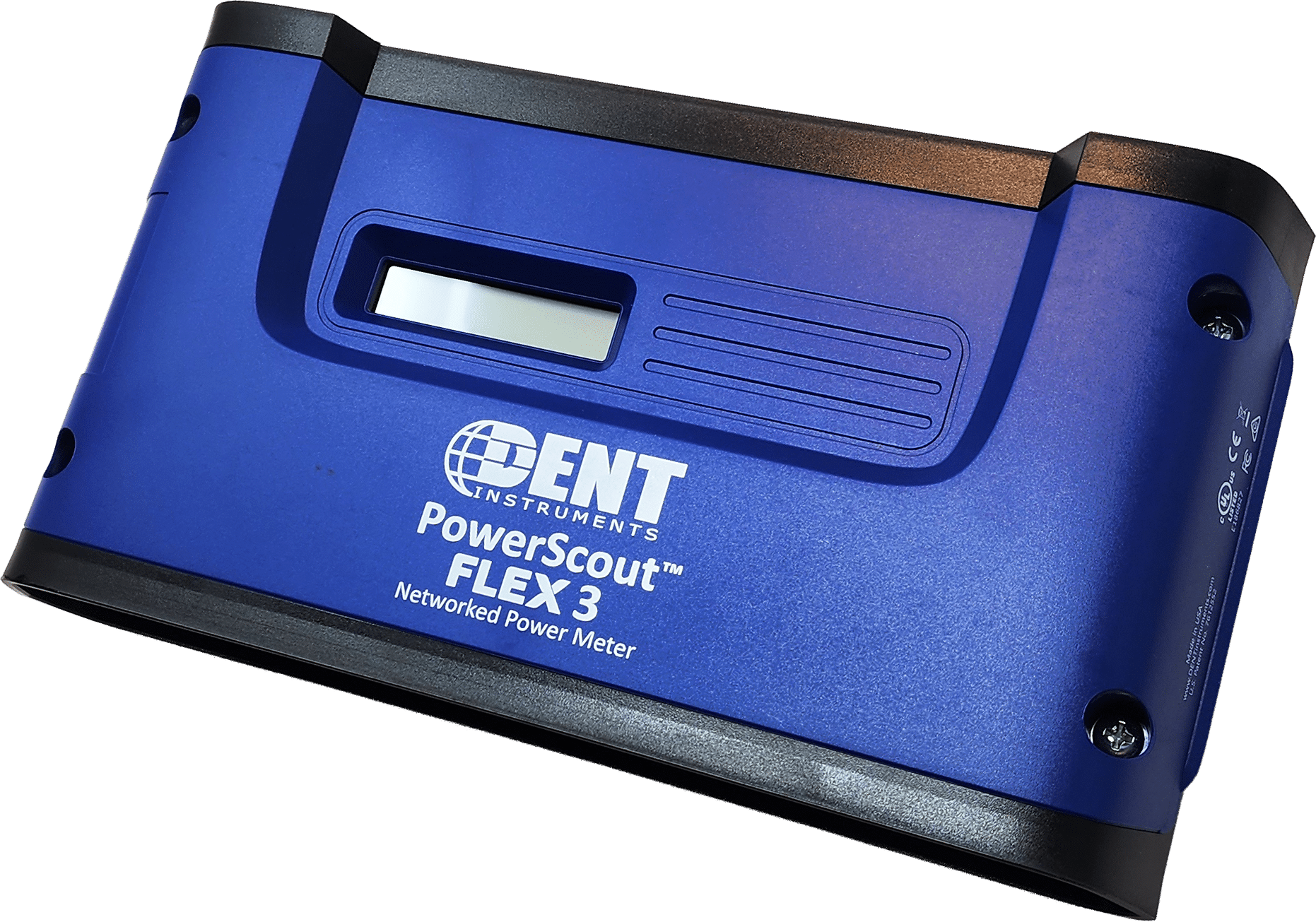

The New PowerScout FLEX 3 is the latest model in the FLEX family, replacing the PowerScout 3 HD as DENT Instruments’ 3-channel 3-phase meter. DENT’s single-point meter offering features increased measurement performance, industry-standard communications, and two form factors. It can utilize any of DENT’s internally-shunted, 333 mV output split-core or RōCoil CTs. Monitor a single three-phase load or network with other PowerScout FLEX meters to monitor several loads across your facility.
Revenue-Grade Performance
With high-speed continuous sampling, data update rate of 1 Hz, and ANSI C12.20-2015 Class 0.2 revenue-grade accuracy (depending on CT), the PowerScout FLEX 3 is well-suited for accountability metering in commercial, retail, and industrial facilities including demand response and tenant submetering.
Line or USB Powered
PowerScout FLEX 3 instruments are line-powered with an internal wide-range power supply, allowing line-to-line voltages from 90-600 VAC. For convenience, the PS3FX also includes a USB (Type C) connector which allows the meter to be powered from a host PC or laptop computer during configuration.
Industry-Standard Modbus or BACnet
The PowerScout FLEX 3 supports both Modbus (based on SunSpec IEEE-754) and BACnet communications protocols. Communications interface can be accomplished through serial RS-485 or Ethernet using either Modbus RTU, BACnet MS/TP, Modbus TCP, or BACnet IP protocols.
Quick Setup
The PowerScout FLEX 3 can be quickly configured using one of two interfaces: ViewPoint FLEX PC Application or through a Web Browser. Configurations can be saved to a template for re-use. Use the on-board LCD and thumbwheel to verify setup.
Powerful Troubleshooting
The PowerScout FLEX 3 meter includes DENT’s patented* PhaseChek™ circuitry for identifying mis-phased and backwards CTs. When used in conjunction with FLEXPoint software, advanced analytics are available, including waveform visualization, vector polar plotting, and harmonic distortion analysis.
Safety Standards
DENT Instruments has set the standard for user safety by designing the PowerScout FLEX to protect users from harm during the meter installation process. In particular, note the following safety features:

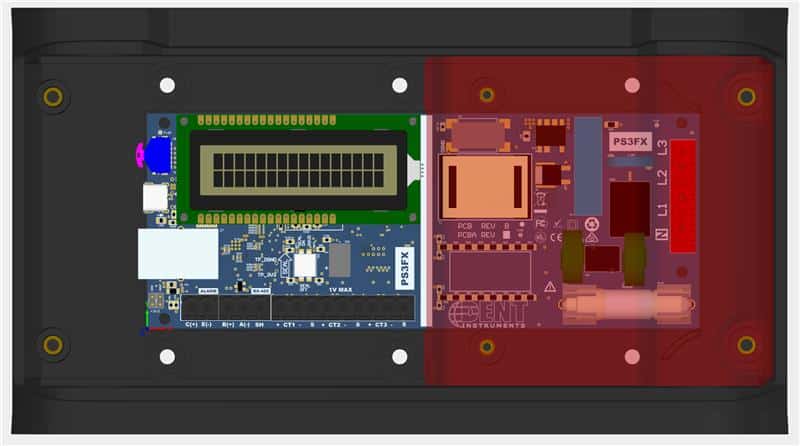

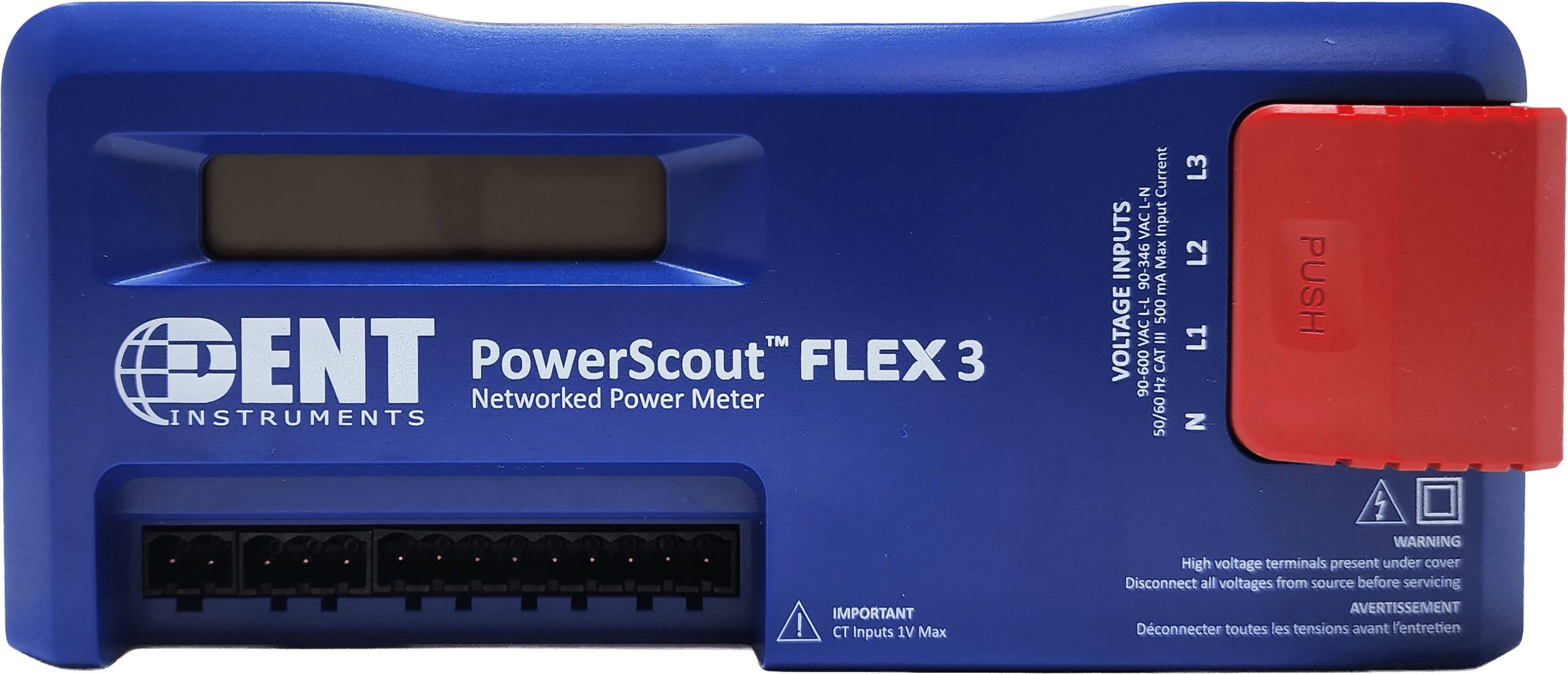

- When the high-voltage (TouchSāf™) cover* is installed on the PowerScout FLEX meter, the NFPA70E-compliant USB interface is safe to use without the use of additional PPE or shutting off the electrical panel.
- The 200 KAIC fuse that is standard on all PowerScout FLEX meters exceeds most regulatory requirements, making it the safest meter on the market.
- The PowerScout FLEX meters have been evaluated to withstand 6kV line surges.
Always follow all local electrical codes and employer guidance regarding the use of PPE and other safety requirements.
* High-voltage (TouchSāf™) cover is standard on all PowerScout FLEX instruments except plate versions of the PowerScout FLEX 12 (PS12FX-P-D-N & PS12FX-P-N-N). Contact the factory for details.
Two Available Configurations

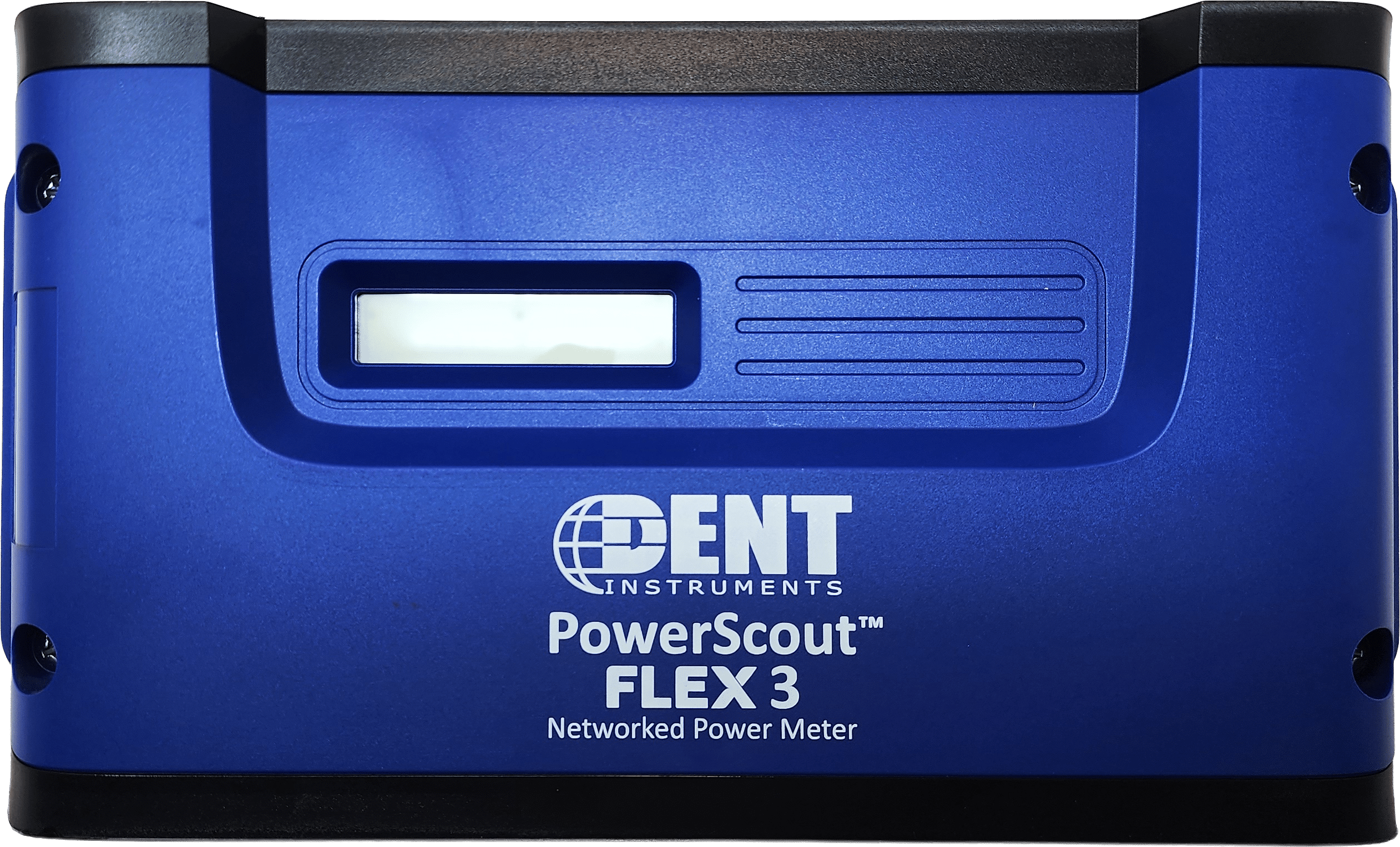

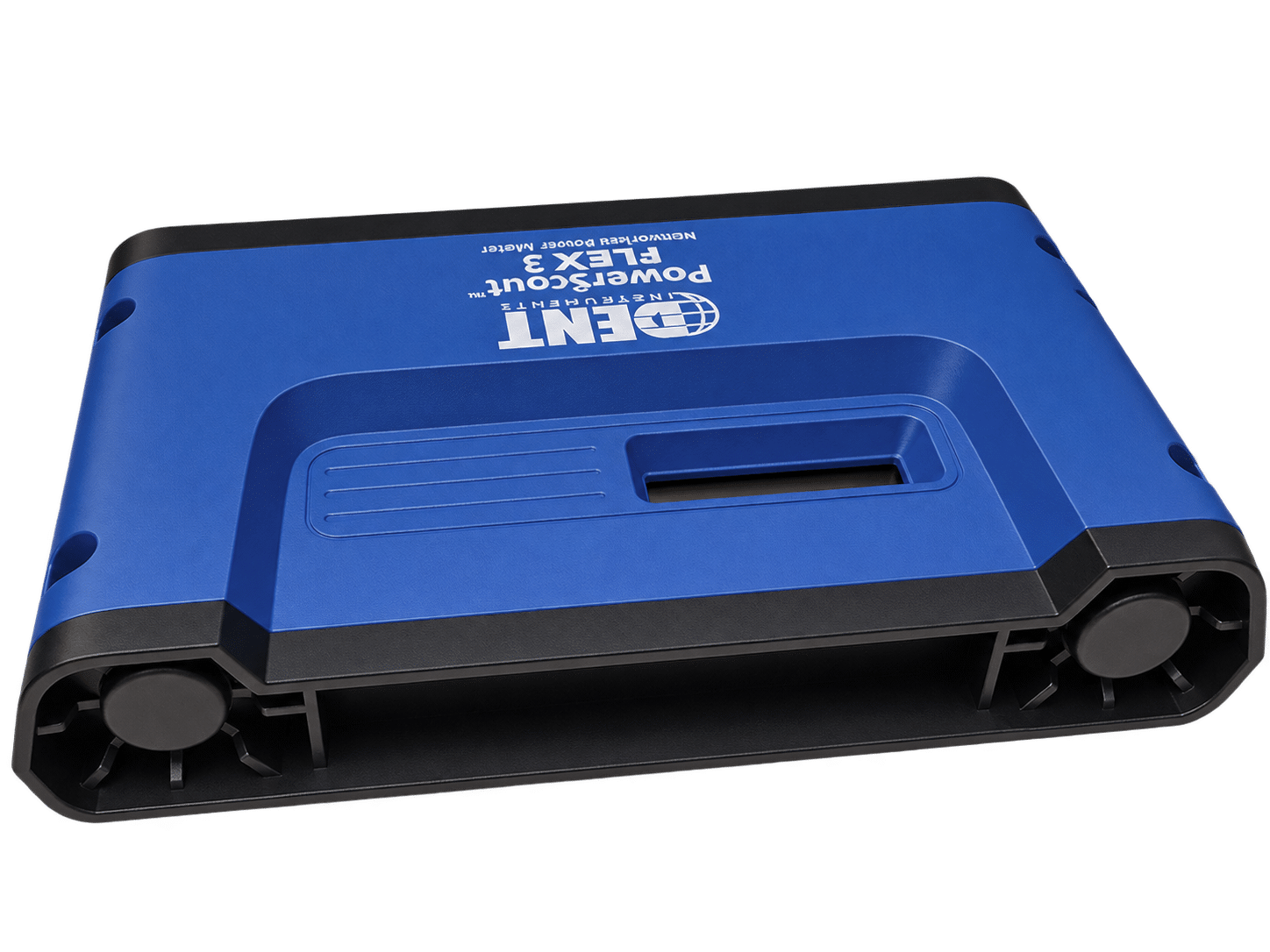

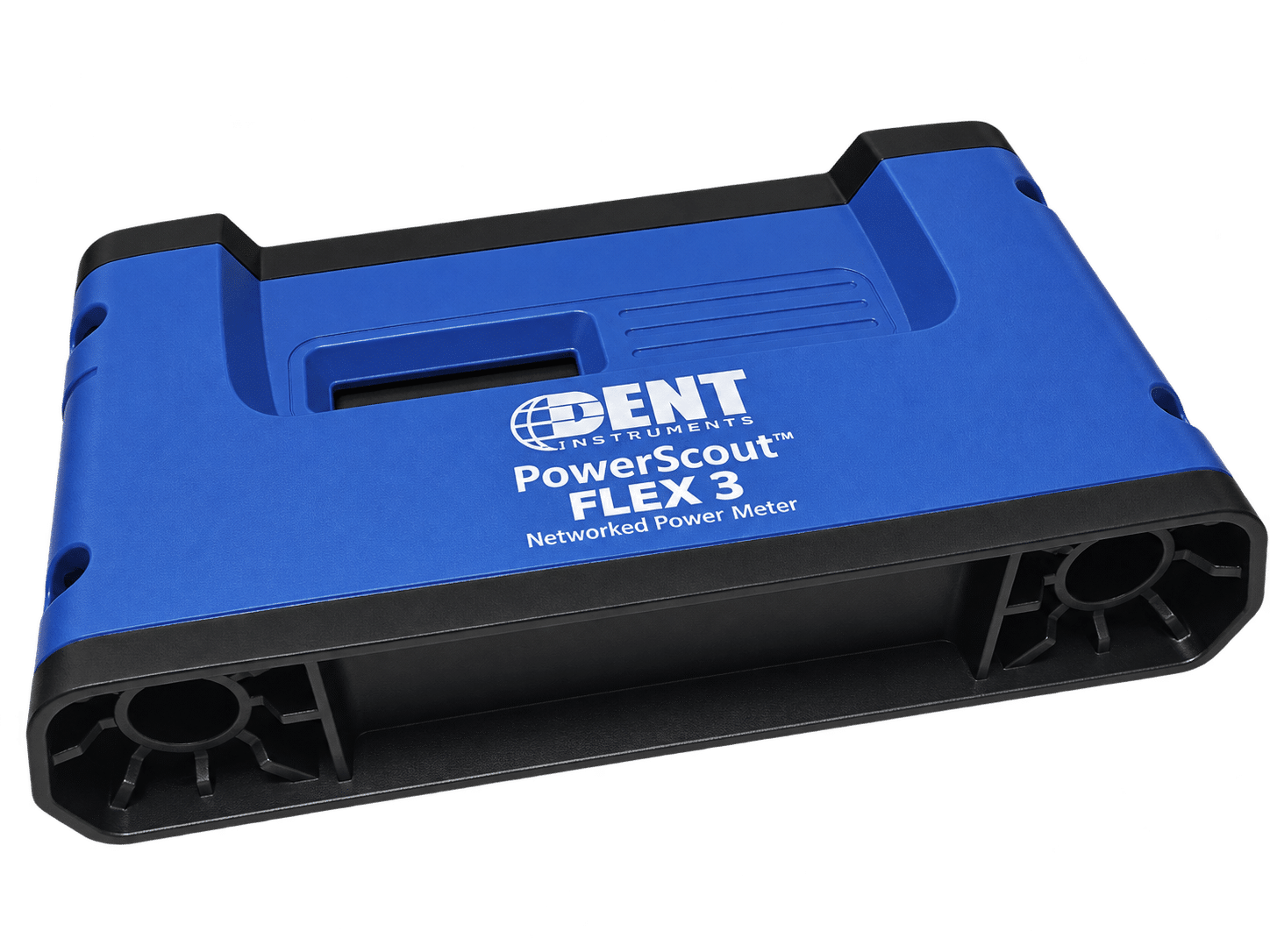

The PowerScout FLEX 3 is available in a compact enclosure to facilitate mounting in the UL-approved enclosure of your choice using DIN rail or in a wall-mount enclosure that’s ready to be installed near your panel or switchgear.
The PowerScout Series meters are not meant to be standalone energy recorders. They are designed to connect as a slave device to a data logger, Remote Terminal Unit (RTU), or building management host network.
