**NOTE: Current Transformers are NOT included – be sure to browse our selection and find the size and rating that best fits your application!**

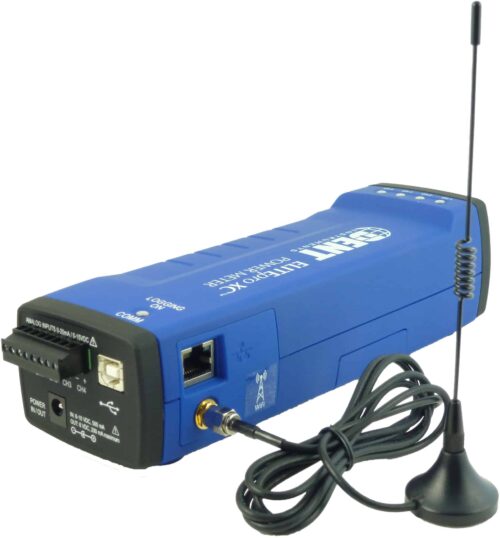

**NOTE: Bluetooth is no longer an available option – only Wi-Fi for wireless communication is available**
Typical Applications: Measurement and Verification (M&V) Studies, Electrical Load Profiling, Energy Audits, New Technology Assessment Studies
The ELITEpro XC energy data logger is a complete, portable solution for pinpointing electric usage and recording building performance metrics. It is capable of measuring, storing, and analyzing electrical consumption data which is derived from the voltage and current inputs. The ELITEpro XC portable power data logger uses direct connections to each phase of the voltage and various interchangeable current sensor options such as split-core , clamp-on, or flexible Rogowski RoCoil current transformers (designed for large loads or large cables and bussbars) to monitor current on each phase.
The ideal tool for energy audits, the ELITEpro XC power meter can capture kWh/kW energy and demand data as well as virtually all relevant energy parameters for diagnostics and monitoring on three-phase or single-phase circuit installations. Electrical load diagnostic parameters, such as power factor (both Apparent and Displacement), are captured in addition to energy and demand values.
In addition to recording kWh/kW data, the ELITEpro XC electric data logger also features four analog input channels which can be configured for voltage or current input used in any combination among channels. Analog inputs are especially helpful when used in conjunction with power measurements to correlate the consumption of electricity with environmental, HVAC plant performance, or other process conditions. Typical uses might include logging ambient temperature, building temperatures, solar insolation, tank pressures, duct flows, etc. Obtain this valuable normalized data using just one meter: The ELITEpro XC Power Logger.
The ELITEpro XC’s flexibility, size, portability, and ease-of-use make them ideal tools for gathering detailed consumption information in commercial, industrial, government, and retail environments.
All pricing in US Dollars and applies to US customers only. Pricing does not include duties and taxes. International customers, please click here to obtain a quote.
