PowerScout 48 HD Multi-Circuit Power Submeter

$2,200.00$2,450.00

SKU: N/A Categories: ,

Description

Maximum Flexibility for Monitoring

The flexible design of the PowerScout 48 HD allows it to be configured for monitoring any combination of up to 16 three-phase or 48 single-phase electrical circuits across two separate voltages with revenue grade accuracy (ANSI C12.20-2010 Class 0.2). Equip the PowerScout 48 HD meter with any combination of DENT’s split-coresolid-core, or RoCoil (Rogowski) CTs.

Easy Installation

Every PowerScout is line powered and designed to operate on a broad range of voltages, from 90-600VAC, and features two separate voltage inputs. Modbus or BACnet protocols are field-selectable and any combination of split-core or flexible RōCoil CTs can be used. Additionally, PowerScout 48 HD meters have passed rigorous BTL (BACnet Testing Laboratory) testing to ensure interoperability across a wide range of systems and devices.

Configure the meter using the ViewPoint HD software utility and a direct USB connection prior to installation. Eliminate expensive trips back into the field: patented* PhaseChek™ Technology ensures proper CT-to-phase installation the first time.

If ordered with an enclosure, 1-inch EMT conduit connects easily to the enclosure housing – no drilling required.

Minimum Part Numbers, Maximum Features

Keep it simple: Don’t fight with a long list of SKUs only to realize an important feature is missing. All PowerScout HD Series Meters are equipped with smart, standard features like the flexibility to switch between Modbus® or BACnet®, Ethernet or Serial (RS-485), or the ability to use any millivolt CT, including Rogowski coils, on any channel.  When installed, the platform agnostic PowerScout HD Series meter easily integrates within connected products of any building management system (BMS) software, models equipped with BACnet® and Modbus® protocols and can be easily utilized with any system.

The PowerScout HD Series meters are not meant to be standalone energy recorders. They are designed to connect as a slave device to a data logger, Remote Terminal Unit (RTU), or building management host network.

*U.S. Patent & Trademark Office, No. 7,612,552. PhaseChek™ only available on meters equipped with the display option.

Please contact DENT Instruments for lead times on this product.

All pricing in US Dollars and applies to US customers only. Pricing does not include duties and taxes. International customers, please click here to obtain a quote.

Additional information

Weight N/A
Dimensions N/A
Model

With Enclosure + Display, With Enclosure, No Display, With Mounting Plate + Display, With Mounting Plate, No Display

Features

Features
  • 48 current channels: Multi-circuit submeter monitors voltage, current, power, energy, and many other electrical parameters on any combination of single and/or three-phase systems
  • Two independent voltage inputs allow the PowerScout 48 HD meter to be used on two systems simultaneously
  • Line-Powered: 90-600V Phase-to-Phase power supply
  • Revenue Grade: ANSI C12.20-2010 Class 0.2

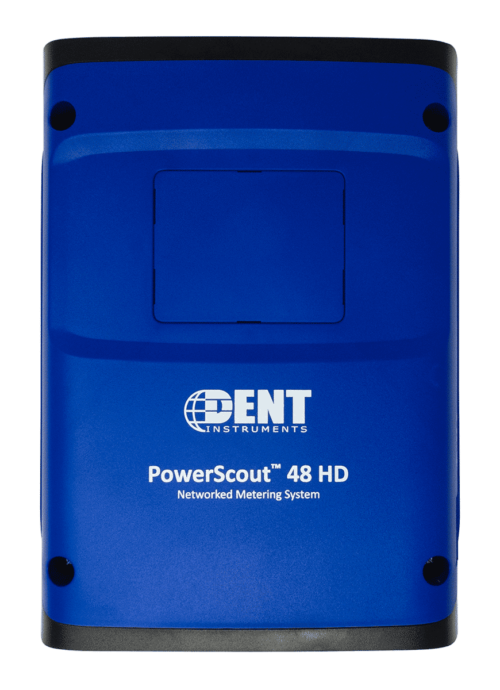

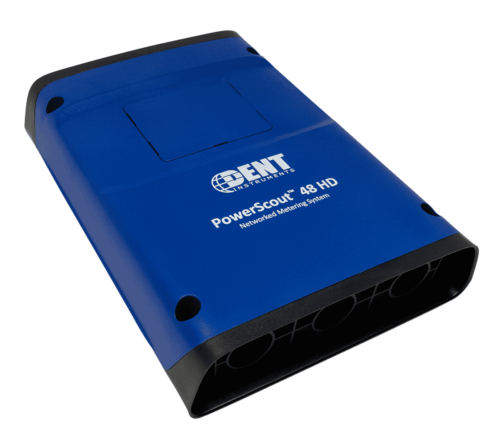

  • Available with UL 94-V0 enclosure or as a circuit board mounted on a rugged plate to be mounted in an enclosure of your choice

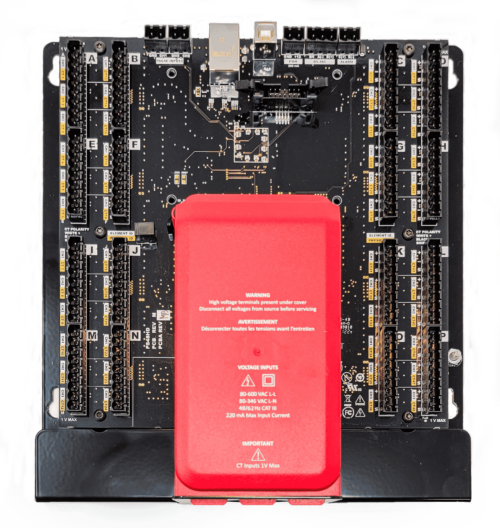

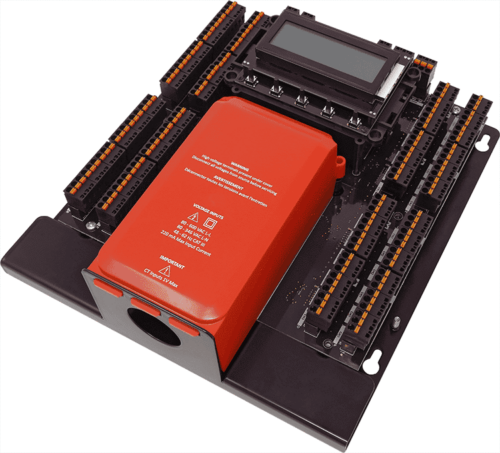

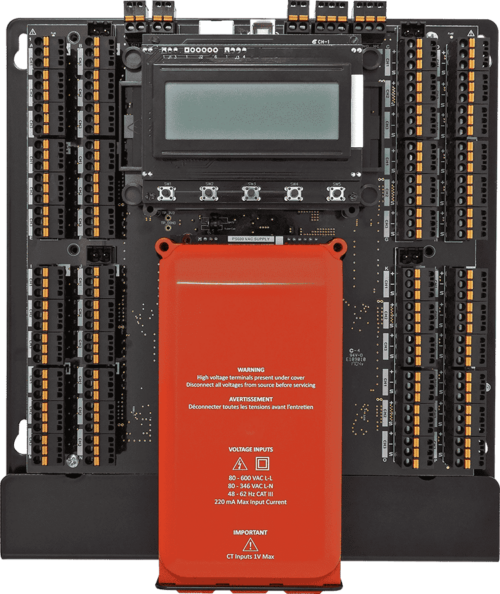

  • Mounting Plate included on circuit board only version to help facilitate easy, safe installation

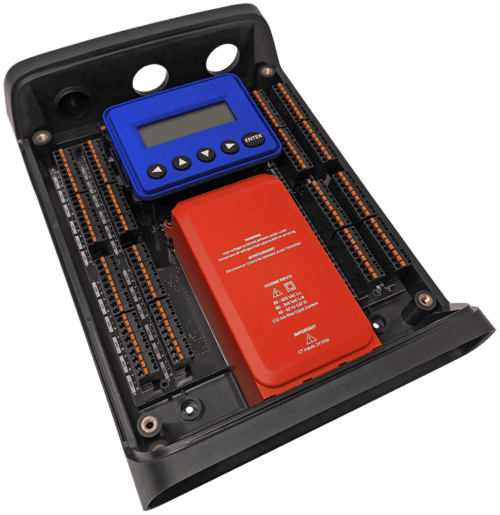

  • Extra level of protection: High-Voltage Cover offers additional safety
  • Communications: Utilize either BACnet or Modbus protocol over either Serial or Ethernet
  • Floating Point: IEEE-754 data format allows bidirectional monitoring and eliminates scaling factors
  • Mix-and-match a full range of Split Core or RoCoil Rogowski-style CTs, including several revenue-grade options

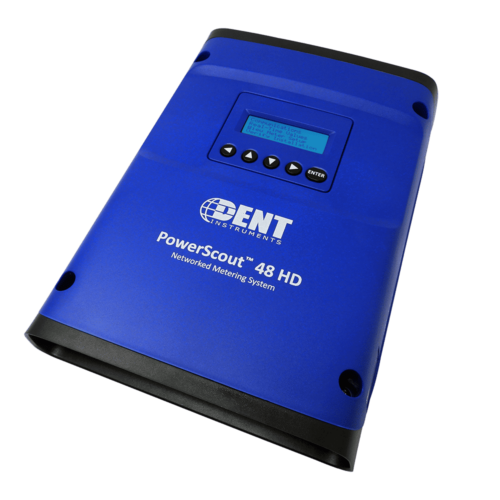

  • Optional display shows real-time information about the meter configuration and metered data
  • PhaseChek™ confirms proper CT orientation
  • UL Listed (enclosure version) or UL Recognized (circuit board only and mounting plate versions)
  • CE Mark
  • BACnet Testing Laboratory (BTL) Certification to ensure standard compliance, reliability, and interoperability within a BACnet environment
  • 5 year warranty

Applications

Applications
  • Data Center Monitoring
  • Tenant Submetering (shopping malls, apartments, office space, etc)
  • Net Metering (renewable energy applications, such as solar or wind)
  • Commercial
  • Retail
  • Industrial

Documents

Documents
Part Numbers


Part Numbers

Part Number

Description

PS48HD-C-D-N

PowerScout 48 HD, WITH ENCLOSURE + DISPLAY

PS48HD-C-N-N

PowerScout 48 HD, WITH ENCLOSURE, NO DISPLAY

PS48HD-P-D-N

PowerScout 48 HD, MOUNTING PLATE + DISPLAY

PS48HD-P-N-N

PowerScout 48 HD, MOUNTING PLATE, NO DISPLAY

Software

Software

ViewPoint HD Download
