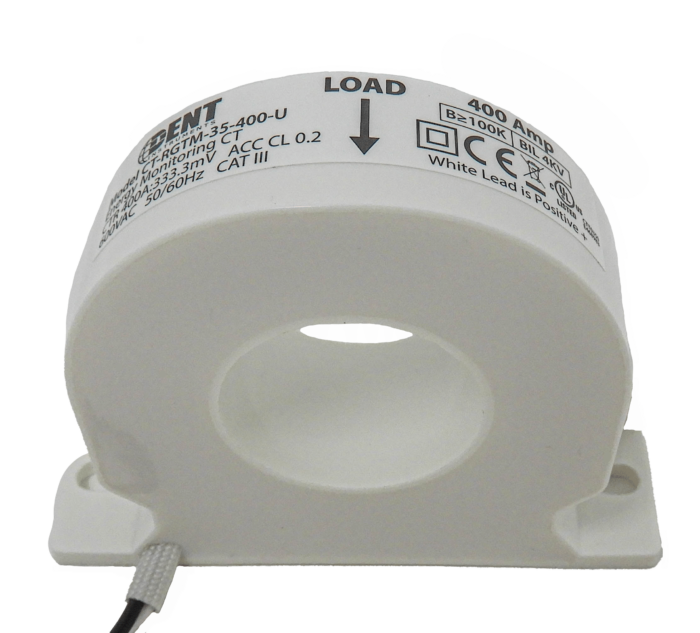

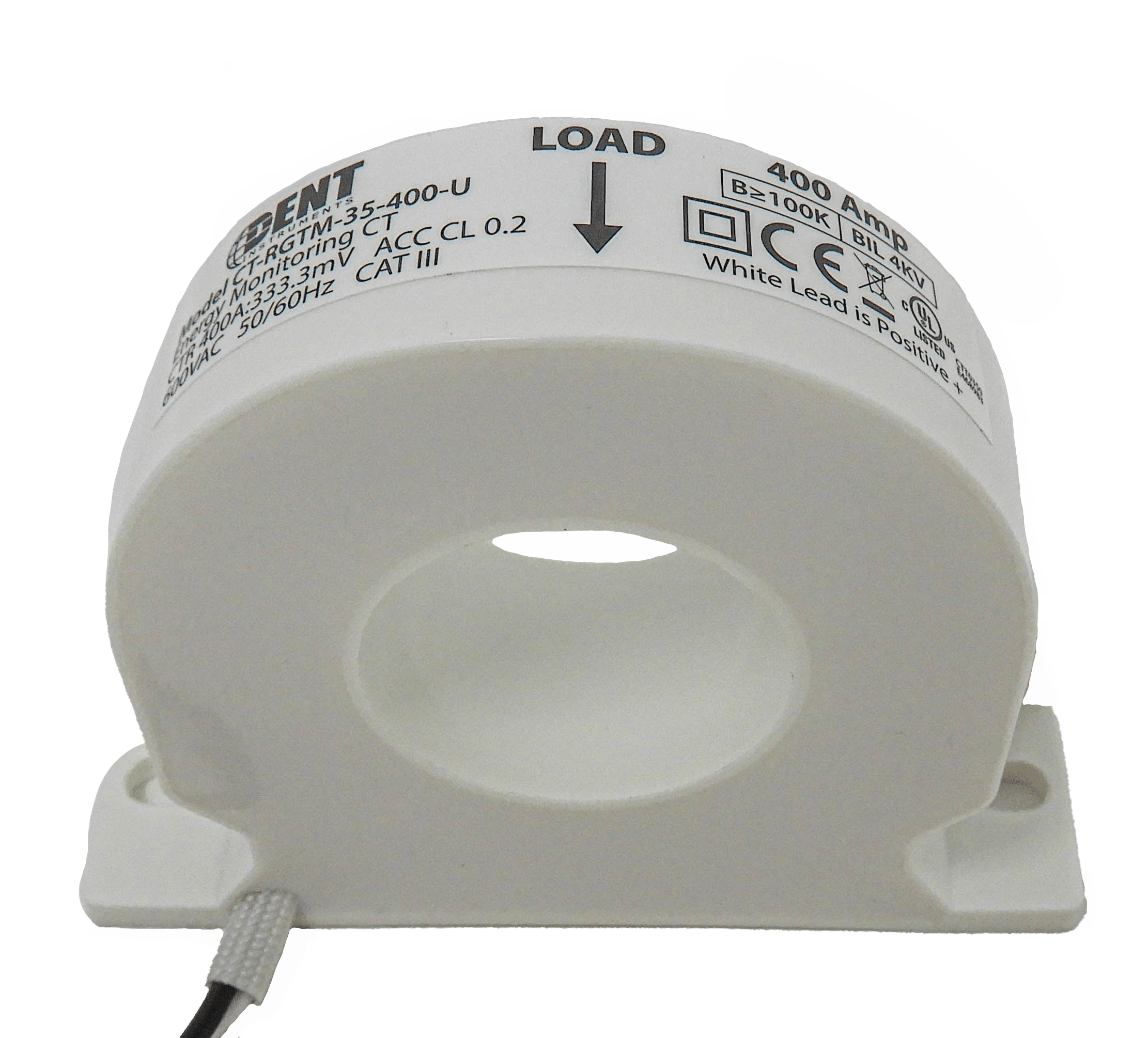

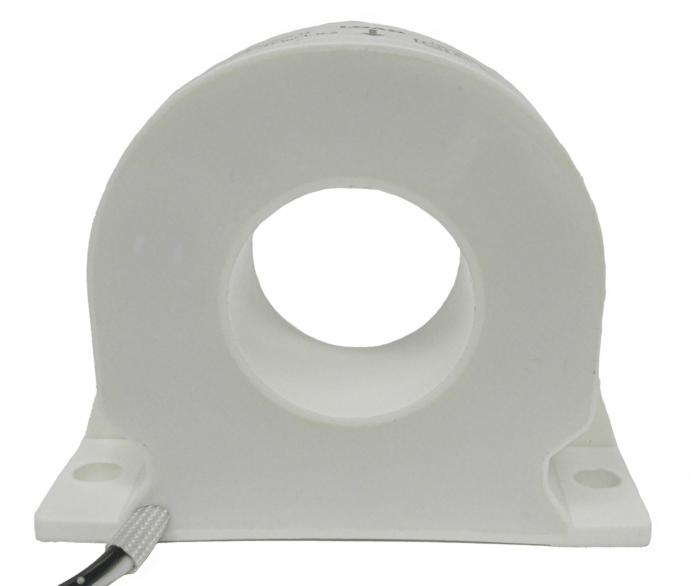

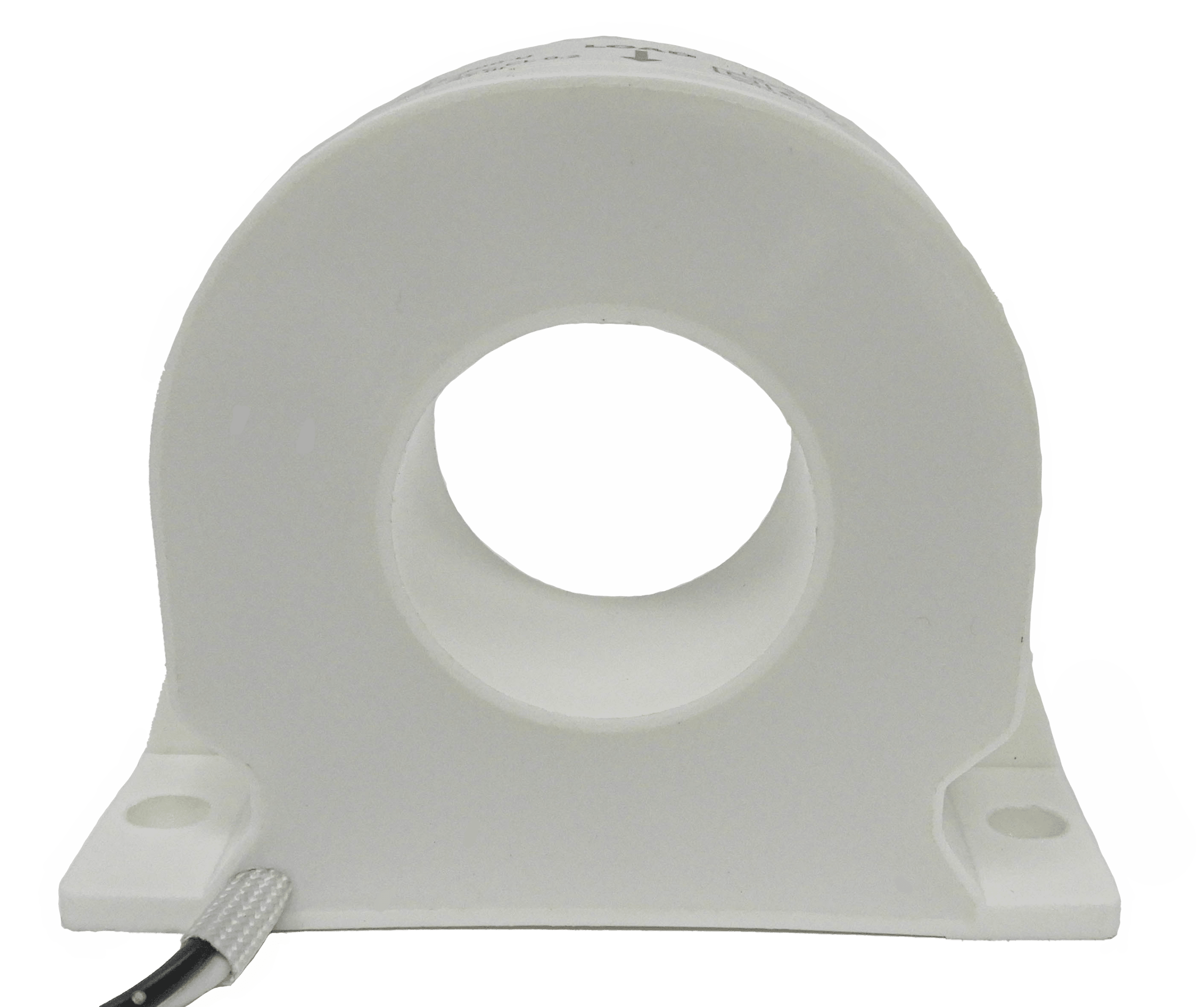

100/200/400A Revenue Grade Solid Core Toroidal Mounting Current Transformers

$47.00$74.00

Description

DENT’s Revenue Grade Toroidal Current Transformers with Mounting Flanges ensure exceptionally accurate signal transformation, making them ideal for Revenue Grade applications. The inclusion of mounting flanges allows for easy and secure installation. They perform reliably even in harsh environmental conditions, ensuring consistent accuracy and dependability. This series of CTs guarantees very high accuracy and reliable performance in a wide range of conditions.

Designed for use on ANSI C12 Class meters, the revenue grade performance of these CTs meets or exceeds IEC 61869-2 Class 0.2; IEC 60044-1 Class 0.2; and IEEE C57.13 Class 0.3. The RGTM Series CTs are CUL/US 2808 listed as recognized components, CE listed, RoHS compliant, and are 600V CAT III rated devices.

They are available for current inputs up to 400 Amps with 3M (9.8′), 22 AWG twisted pair leads.

Available in three amperage ranges: 100A, 200A, 400A.

All DENT CTs are sold individually (not in sets).

All pricing in US Dollars and applies to US customers only. Pricing does not include duties and taxes. International customers, please click here to obtain a quote.

Additional information

Weight 1 lbs
Dimensions 11 × 9 × 5 in
Current Rating

100A, 200A, 400A

CT Style

Solid Core

Form

Toroidal – Mounting

Accuracy Grade

Revenue (Tenant Billing)

Accuracy Rating

±0.2% error

Current Range

1-100A, 2-200A, 4-400A

Lead Length

9.8' (3m)

CTEP Approval

CTEP-Approved

Key Features

Key Features

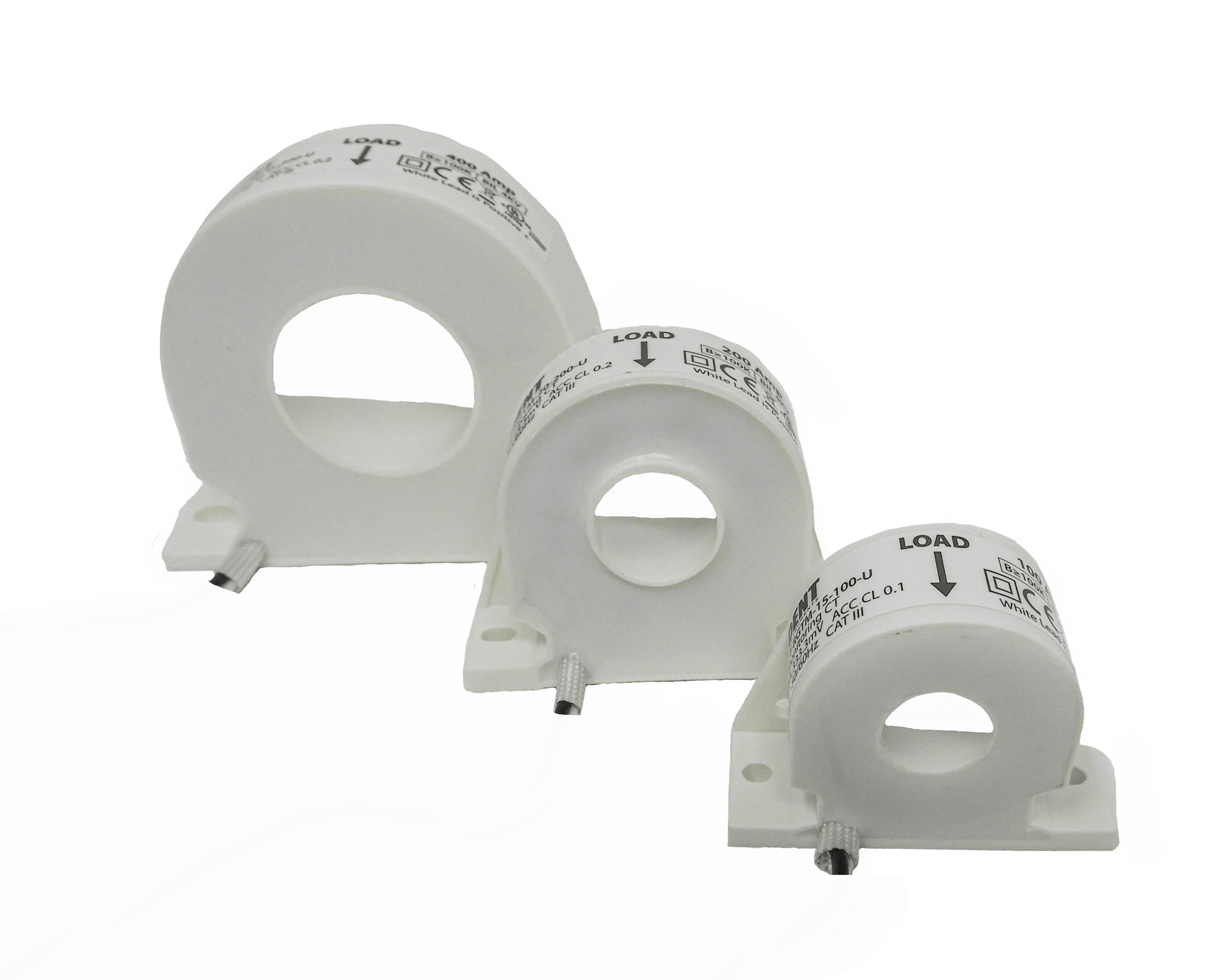

  • Available in three window sizes: 15mm, 20mm, 35mm
  • Available in three amp ratings: 100A, 200A, and 400A
  • Output is 333.3mV at rated current
  • Revenue grade performance meets or exceeds IEC 61869-2 Class 0.2, IEC 60044-1 Class 0.2, and IEEE C57.13 Class 0.3
  • Designed for use with PowerScout or ELITEpro meters
  • UL 2808 recognized components
  • CE Listed

Documentation

Documentation

Part Numbers

Part Numbers

All DENT CTs are sold individually (not in sets).

Description  Amp Range Part Number
100A Revenue Grade Solid Core Toroidal Mounting CT 1-100A CT-RGTM-15-0100-U
200A Revenue Grade Solid Core Toroidal Mounting CT 1-200A CT-RGTM-20-0200-U
400A Revenue Grade Solid Core Toroidal Mounting CT 1-400A CT-RGTM-35-0400-U
