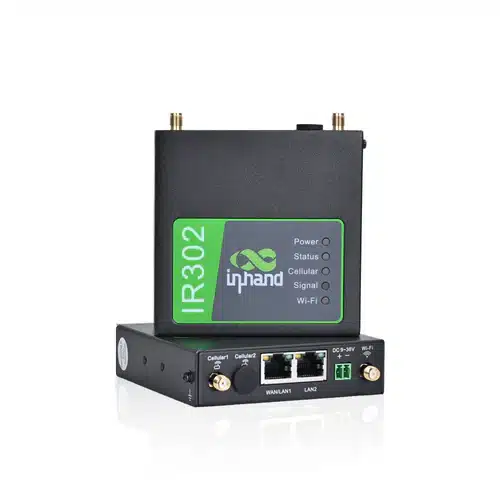

IR302 Industrial 4G Router

$200.00

Description

The IR302 is a cost-effective, compact, industrial 4G LTE router for flexible IoT connectivity. It’s equipped with two Ethernet ports, dual SIM holders, and a Wi-Fi interface. It provides easy, flexible, and secure connectivity to our meters in nearly any situation.

The IR302 is small and lightweight; it comes with a variety of mounting options (DIN rail and Panel) and can even be powered directly from the PS12HD, PS24HD, or the PS48HD’s 12V output. It’s compatible with all major cellular SIMs (AT&T, Verizon, T-Mobile, Bell, Free Mobile, O2, and many more) so finding the right cell carrier is easy.

APPLICATIONS:

Wi-Fi Adapter
Installations where a physical network connection to the meter is difficult or impossible, the IR302 can add Wi-Fi capabilities to any DENT meter.

Remote Site Location
Connecting to a network or RTU can be impossible for remote loads such as EV charging stations or remote solar installations. The IR302, with cellular connectivity and a DENTCloud-enabled meter, makes data instantly accessible on the network.

High-Security Areas (Closed Networks)
For high-security networks, using the IR302 can create a layer of isolation between Dent meters and devices on the local network. This setup ensures that our meters can access the internet and cloud services while remaining inaccessible to local network devices.

Essential Connection (Fail-Over)
When reliability is a must, the IR302 can be set up to fail-over to cellular networks when the local network is unreliable. This ensures there are no gaps in data.

VPN Access
The IR302 supports various VPN protocols (including OpenVPN), allowing remote meter administration using ViewPoint software from any location. This secures flexible access for managing meters remotely

Additional information

Weight 1.7 lbs
Dimensions 11 × 9 × 5 in

Documents

Quick Start Guide

Product Overview

Specifications

SPECIFICATIONS:

Power
100-120mA@12V (Working)
190mA@12V (Peak)

Ethernet
(2) 10/100Mbps fast Ethernet ports
LAN/WAN port 1.5KV isolation

Cellular
Dual drawer-type SIM slots. 2FF SIM

Wi-Fi
IEEE 802.1 1b/g/n, 150Mbps

Antennas (included)
(2) 3G/4G:SMA
(1) Wi-Fi: RP-SMA

Dimensions
90x90x25mm

Weight
240g

Housing
Metal (IP30)

Operating Temp
-20C to 70C

Certificates
CE, FCC, PTCRB
