| Part |

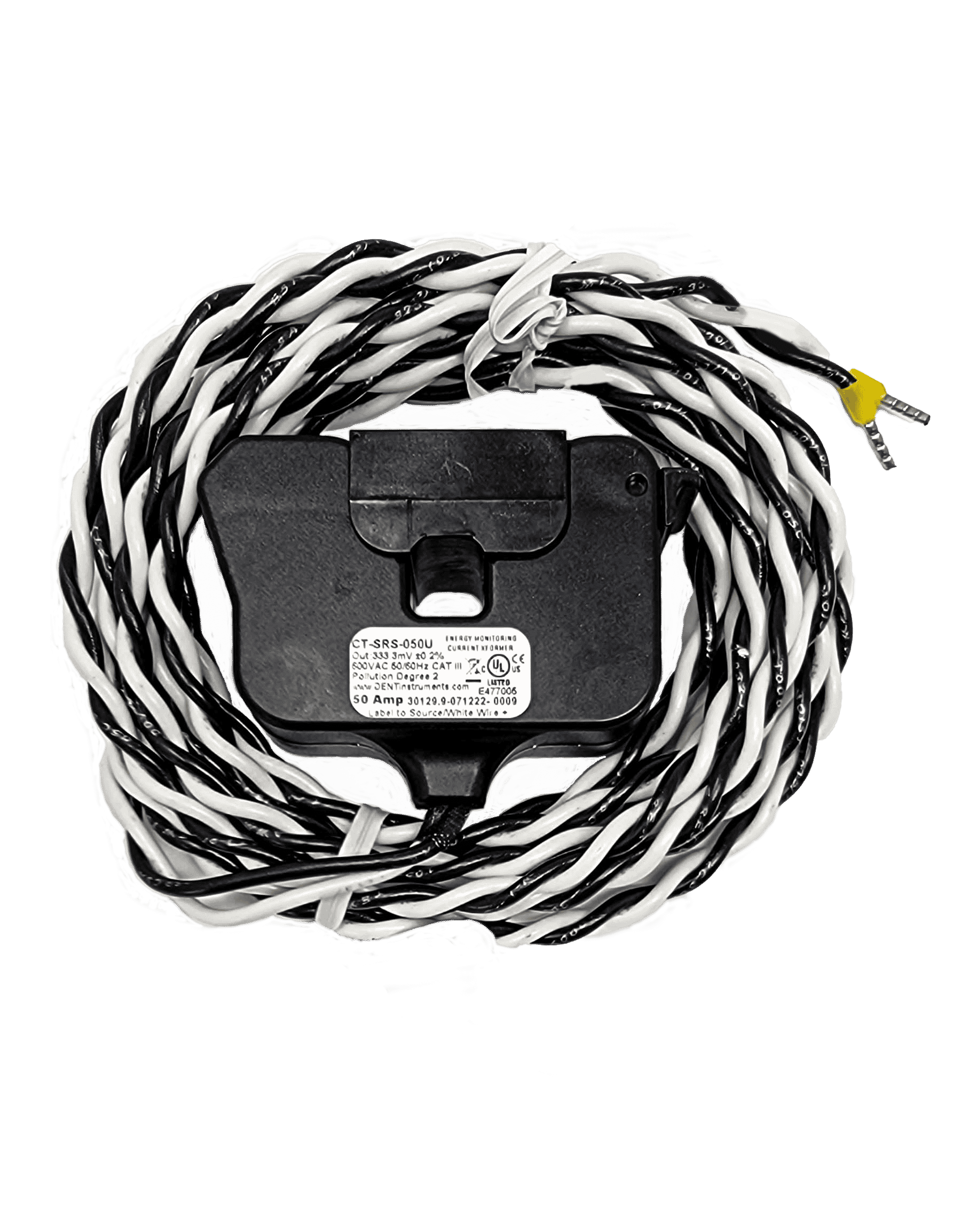

CT-SRS-005, -050 |

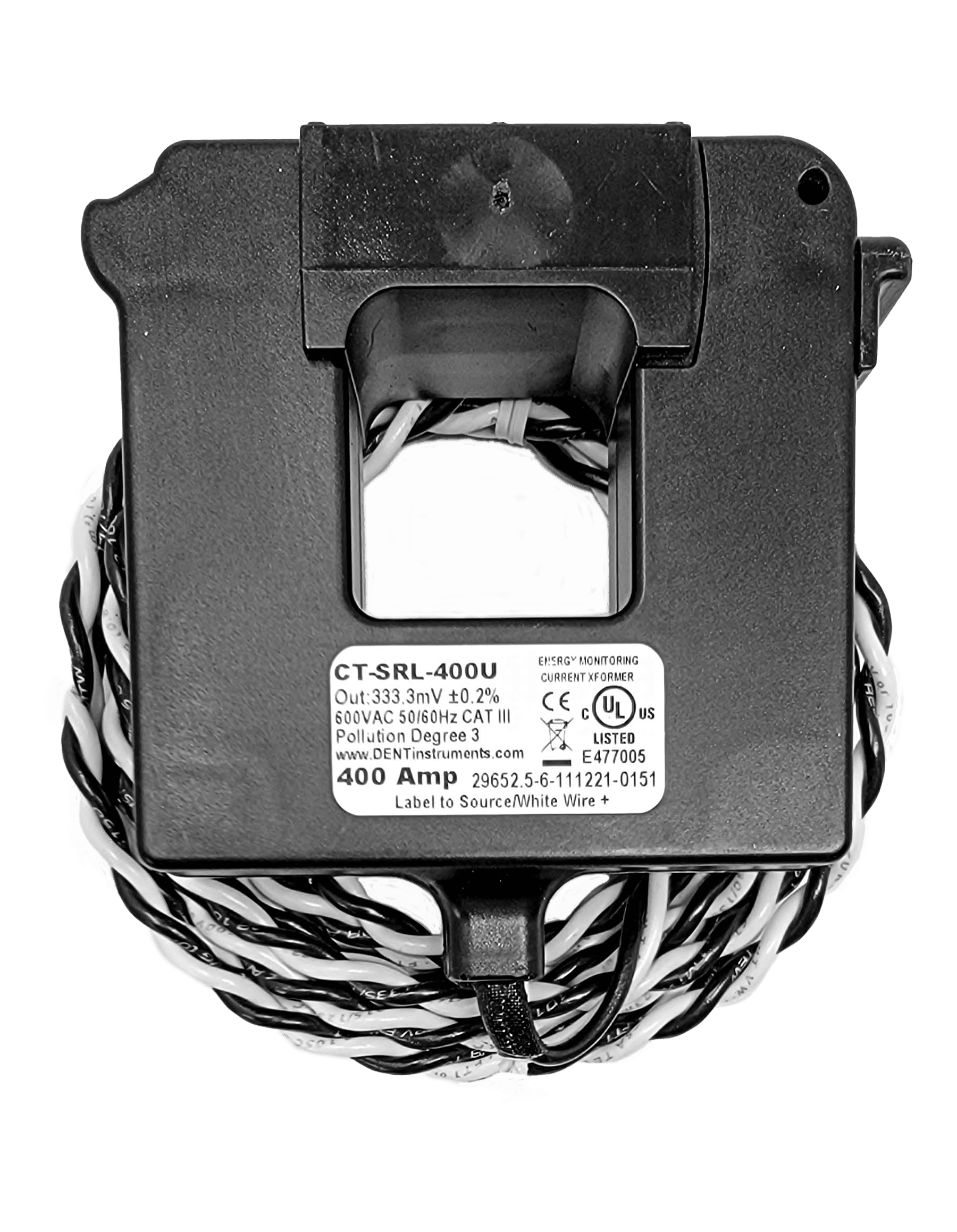

CT-SRL-100, -200, -400 |
CT-RGT12-0005, -0020, -0050, -0100 |
| Window Size |
1 cm (0.4”) |
3.17 cm (1.25″) |
1.28 cm (0.5″) |
| Output Signal |
333 mV at rated current |
333 mV at rated current |
333 mV at rated current |
| Useful Current Range |
5A Model: 0.05—10A
50A
Model: 0.5—100A |
100A Model: 1.0—200A
AC
200A Model: 2.0—400A AC
400A Model: 4.0—500A AC |
5A Model: 0.05 – 10A AC
20A Model: 0.2—40A AC
50A Model:
0.5 – 100A AC
100A Model: 1.0—200A AC |
| Nominal Rating |
5, 50 Amps |
100, 200, 400 Amps |
5, 20, 50, 100 Amps |
| Accuracy |
IEC 61869-2 Class 0.2
IEC 60044-1 Class 0.2
IEEE C57.13
Class 0.3 |
IEC 61869-2 Class 0.2
IEC 60044-1 Class 0.2
IEEE C57.13
Class 0.3 |
IEC 61869-2 Class
0.2
IEEE C57.13 Class 0.3 |
| Dimensions |
60.96mm x 41.91mm x
21.58—27.94mm
(2.4” x 1.65” x 0.85” – 1.1”) |
83.81mm x 78.74mm x
33.04mm (3.3″ x 3.1″ x 1.3″) |
36.7 mm x 38.5 mm x
14.2 mm (1.4″ x 1.5″ x 0.6″) |
| Weight |
222 g (7.8 oz) |
318 g (11.2) |
59 g (2.1 oz) |
| Output Lead |
8ft (2.4M) black and white twisted pair 18 AWG MTW UL1015, 600V,
105°C double insulated |
8ft (2.4M) black and white twisted pair 18 AWG MTW UL1015, 600V,
105°C double insulated |
2.4 M (8’), twisted
pair, 24 AWG, 600V rated |
| Safety Requirements |
Conforms to:
UL
Listed to UL 2808
Certified to:
CSA STD C22.2 No. 61010-1 |
Conforms to:
UL
Listed to UL 2808
Certified to:
CSA STD C22.2 No. 61010-1 |
Conforms to:
UL STD 61010-1
EN 60044-1
Certified
to:
CAN/CSA STD C22.2
No. 61010-1 |
| Working Voltage |
600 VAC, Category III |
600 VAC, Category III |
600 VAC, Category III |
